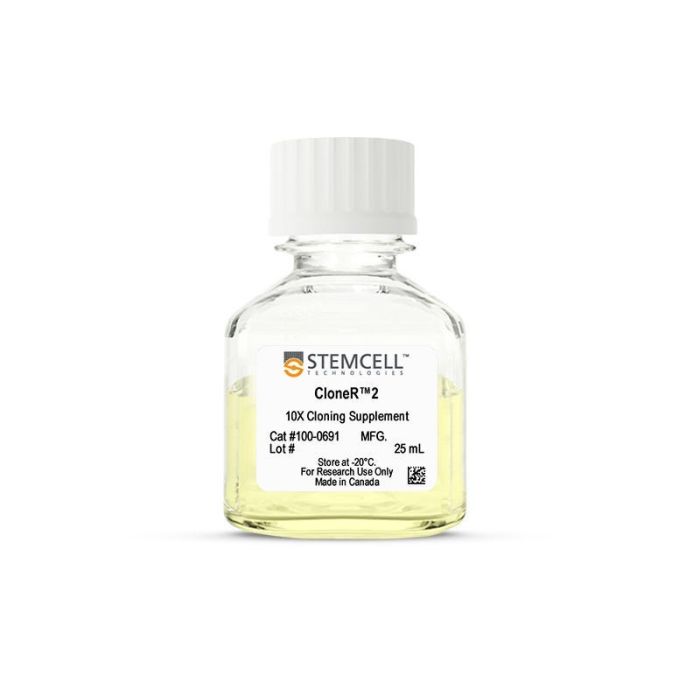

CloneR™2

用于提高人胚胎干细胞和有道多能干细胞在单细胞工作流程中的存活率添加物

率先评论此产品

产品号 #（选择产品）

产品号 #100-0691_C

用于提高人胚胎干细胞和有道多能干细胞在单细胞工作流程中的存活率添加物

产品优势

更多克隆，提前准备。克隆效率提高，使克隆体更早准备好进行筛选。
稳健且一致的克隆表现。在不同的培养系统和细胞系中均表现出高性能。
增强的存活率。在各种密度下以及经历电转或冻存后复苏等高应激事件后，接种效率提高。
直接进行单细胞操作。无需单细胞传代适应阶段。

跳到结尾的图片库

跳转到图像库的开头

总览

使用 CloneR™2可生成可保持基因组完整性和下游分化潜能的人多能干细胞 (hPSC) 克隆系。可在各种高应激条件下（包括高密度或低密度接种）显著提高人胚胎干细胞（ES）和诱导多能干细胞（iPS）的克隆效率和存活率。

在您的基因编辑流程中，添加 CloneR™2 可提升 ES 和 iPS 细胞电转后以及单细胞沉降（Single-cell deposition）的存活率（参见下文数据）。该添加物还可促进低密度接种（<25 个细胞/cm²）或 FACS 单细胞分选（1 个细胞/孔）获得的克隆细胞的存活和扩增，无需进行单细胞适应过程。同时，CloneR™2 也适用于在较高密度铺板的单细胞存活，包括诸如冻存复苏、或分化前建立单层细胞等应激条件下的应用。

CloneR™2 是一种成分明确、无血清的添加物，可与 TeSR™ ES 和 iPS 细胞培养基兼容使用，并适用于您选择的细胞培养基质。

Data Figures

Three 10 cm dishes showing increased numbers of colonies from Y-27632 compound to CloneR™ to CloneR™2

Figure 1. CloneR™ and CloneR™2 Supplements Improve Cloning Efficiency and Colony Size

hPSCs display a considerable increase in cloning efficiency when cloned using (B) CloneR™ compared to using (A) Y-27632 compound. (C) CloneR™2 further improves cloning efficiency and increases colony size when compared to either Y-27632 compound or CloneR™. Shown are examples of H9 hESCs in 10-cm dishes, plated at 200 cells per dish (~4 cells/cm²) in mTeSR™ Plus on Vitronectin XF™.

Images of colonies next to two graphs showing increased cloning efficiency and colony size in CloneR™2 across cell lines.

Figure 2. Use of CloneR™2 Enables Improved Cloning Efficiency and Larger Colonies When Compared to Use of CloneR™

(A) Representative images of 200 cells (H9 cell line) in 12-well plates grown in mTeSR™1 on Vitronectin XF™ at day 8 after seeding. Three hES (H1, H7 and H9) and 5 hiPS (WLS-1C, STiPS-F016, STiPS-M001, STiPS-R038 and STiPS-B004) cell lines were seeded at clonal density (50 cells/cm²) on Vitronectin XF™, in mTeSR™1 supplemented with CloneR™ or CloneR™2. mTeSR™1 supplemented with CloneR™2 increases (B) cloning efficiency and (C) colony size of hPSCs when compared with mTeSR™1 supplemented with CloneR™. Each data point in (B) represents an average of 3 technical replicates, with at least 7 biological replicates (n) per cell line.

Images of 96 well plates of cells with more colonies in CloneR™2 and summarized cloning efficiencies shown in a bar graph.

Figure 3. CloneR™2 Improves Clonal Generation Following Single Cell Deposition

Single-cell deposition is the gold standard of cloning; it relies on a FACS-based method that typically results in low cloning efficiency. Clones generated in mTeSR™ Plus supplemented with CloneR™2 demonstrate significantly improved (E) cloning efficiency and (B, D) colony size when compared to clones generated in mTeSR™ Plus supplemented with CloneR™. (A, C) Representative images of H9 hESCs cultured for eight days plated on Vitronectin XF™. Across four cell lines tested, CloneR™ and CloneR™2 had an average cloning efficiency of 21.2 ± 5.6% and 38.6 ± 6.0%, respectively, with at least 3 biological replicates per cell line. * denotes p < 0.05; *** denotes p < 0.001 by unpaired t-tests.

Graph of seeding efficiency of multiple cell lines in Y-27632 compared to CloneR™2.

Figure 4. CloneR™2 Improves Seeding Efficiency at High Density

CloneR™2 improves single-cell seeding efficiency when used as a supplement in media for the first 24 hours of culture, compared to using Y-27632 as a supplement. 5.0x10⁵ cells were seeded in 12-well plates coated with Corning® Matrigel® in mTeSR™ Plus supplemented with CloneR™2 or Y-27632. Cultures were analyzed 24 hours post-seeding. The use of CloneR™2 resulted in an average seeding efficiency of 98.2 ± 12.8% compared to the use of Y-27632, which resulted in an average seeding efficiency of 81.9 ± 15.8%, across all cell lines (n = 3 replicates per line).

Graph of increased expansion of hPSCs when plated in CloneR™2 compared to Y-27632

Figure 5. hPSCs Plated in CloneR™2 Show Increased Expansion

When used as a seeding supplement during single-cell passaging, CloneR™2 improves cell expansion when compared to using Y-27632. 3.0x10⁴ cells were seeded in 12-well plates coated with Corning® Matrigel® in mTeSR™ Plus supplemented with CloneR™2 or Y-27632. After 24 hours, the cultures were maintained in complete media (without a cloning supplement) and analyzed on day 5. CloneR™2 resulted in an average expansion of 49.1 ± 10.4 compared to Y-27632, which resulted in a lower average expansion of 21.1 ± 8.2, across all cell lines (n = 3 replicates per line).

Four graphs representing different cell lines for improved hPSC expansion in CloneR™2 following electroporation.

Figure 6. CloneR™2 Improves Recovery of hPSCs Following Electroporation

CloneR™2 can also be used as a survival supplement in gene-editing workflows that require electroporation. Four cell lines were electroporated, then plated in mTeSR™1 and mTeSR™ Plus containing Y-27632, CloneR™, or CloneR™2. Cultures were maintained in complete TeSR™ media (without cloning supplement) after 24 hours and analyzed after 5 days. In all 4 cell lines, (panels A-D) CloneR™2 dramatically improved cell survival and expansion when used as a supplement in the first 24 hours immediately following electroporation compared to both Y-27632 and CloneR™ (n = 2 replicates per cell line).

Bar graph showing improved post-thaw recovery of hPSCs in multiple cell lines when using CloneR™2

Figure 7. CloneR™2 Improves Post-Thaw Recovery of hPSCs

Thawing cryopreserved cells can result in low expansion or loss of the culture within the first passage. Using CloneR™2 as a seeding supplement within the first 24 hours of thawing cells ameliorates this effect, improving post-thaw recovery of hPSCs. Three cell lines were frozen as single cells, then thawed into mTeSR™ Plus containing Y-27632 or CloneR™2 on Matrigel®. Cultures were maintained in complete mTeSR™ Plus (without cloning supplement) after 24 hours, and analyzed on day 4 or day 5. CloneR™2 improves the fold-expansion across all cell lines tested when compared to Y-27632, with at least 7 replicates (n) per cell line.

Protocols and Documentation

Find supporting information and directions for use in the Product Information Sheet or explore additional protocols below.

Document Type

Product Name

Catalog #

Lot #

Language

Document Type

Product Information Sheet

Product Name

CloneR™2

Catalog #

100-0691

Lot #

All

Language

English

Document Type

Safety Data Sheet

Product Name

CloneR™2

Catalog #

100-0691

Lot #

All

Language

English

Applications

This product is designed for use in the following research area(s) as part of the highlighted workflow stage(s). Explore these workflows to learn more about the other products we offer to support each research area.
